Analysis of the pores and the microstructure of cement using X-ray computer tomography combined with 3D scanning electron microscopy

Click the Play button to load and view external content from

Automatically load and view external content from (You can change this setting at any time via our »Data protection policy«.)

Project information

submitted by
Florian Kleiner

Florian Kleiner, Christiane Rößler, Christian Matthes

Christiane Rößler

Civil and Environmental Engineering

Degree programme:
– Other –

Type of project presentation

Winter semester 2019/20

Project description

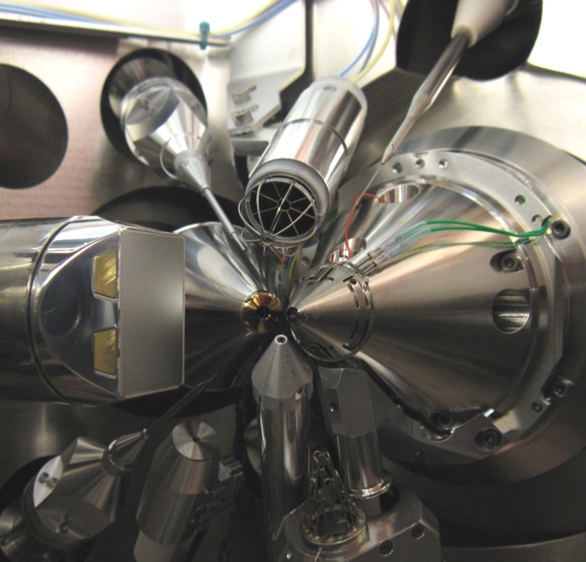

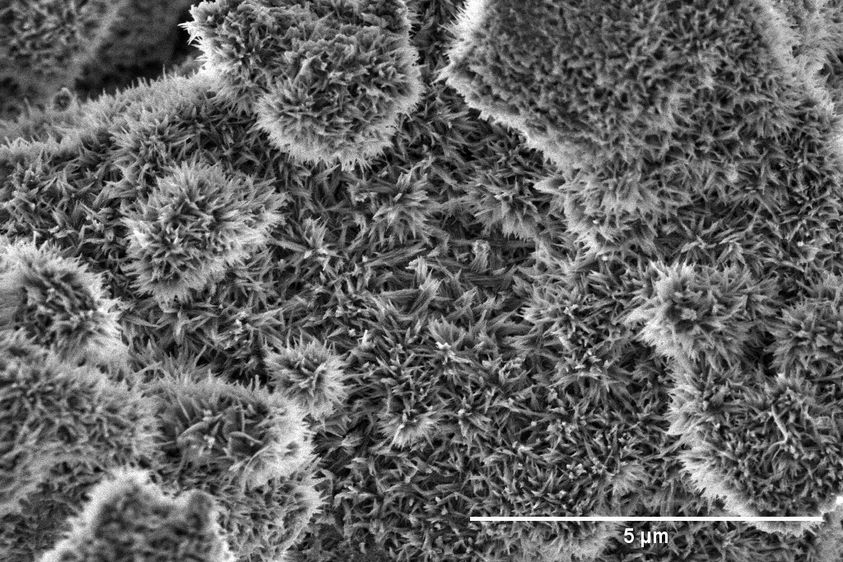

The combination of two state-of-the-art analytical methods allows a deep insight into the pore structure of hardened cement over a large scale (millimetres to nanometres). And therefore, information about transport processes of media in concrete. Sub-µ X-ray computer tomography (Sub-µ X-ray CT) non-destructively radiates through test specimens of various sizes from the size of a pin head to drill cores with a diameter of 20 cm. However, the resolution is limited to about one µm³. To overcome the resolution limit also in the third dimension, a modern scanning electron microscope with a focused ion beam (SEM-FIB) can be used. This makes it possible to cut a cube with an edge length of 10 µm into thin slices. Afterwards, the microstructure can be digitally reproduced with a resolution of less than 5 x 5 x 10 nm and then evaluated.
