Introduction

The goal of the semester project was to write a Max Patch for an interactive sound installation. The installation was about connecting the movement of an individual in a defined space or room to the acoustic environment in this certain area.

The main idea behind this action was to give the person a certain amount of control over the parameters of sounds, that would be played and positioned in the room, without the person necessarily being aware of the interaction. The goal of the installation is not to create a new environment or to make the installation speak for itself alone. It's meant to enhance and augment the given surrounding, giving the recipient the ability to interact with his environment.

This required an interface that wasn't visible or touchable from the beginning on, so the installation used video tracking, scanning the movement of the person in the room.

The data, that's gained from the video tracking is used to influence the parameters of the sound as well as the spatialisation of the sound, meaning its position in the room. This already offers quite a lot of potential to give the recipient a feeling of influence on his environment.

Artistic Statement

The whole process of planning, building and testing the installation happened during the first online semester and Covid-19 pandemic. Most of the life of an ordinary student such as me happened in a small room. Wether it’s working, sleeping, resting, meeting a few friends or just spending free time, everything that normally happened in quite different spaces was now forced and compressed into a small room. That naturally created different areas and spaces with very different meanings, actions and emotions connected with them. They often clashed, yet it wasn’t that easy to separate them from each other. These smaller areas are the basis for the sound composition.

Actually, this relation and connection between the sound installation and the room during the lockdown wasn’t planned from the beginning, but evolved during the semester. The reason therefore was that working on the project perfectly showed the problematic of these different areas and actions colliding due to the lack of space. For example when I set up a 4 speaker surround system in my room, to try connecting the tracking data to the spatialisation of the sound material, one speaker had to stand on my bed to be in the right place, so I had to sleep elsewhere for a few nights. This slowly had me thinking that the installation had to be about this problem, as it fits the original idea of the installation so well. As a result you could say, the installation itself deals with the struggles and problems of its own creation.

This also meant, that the installation was meant to be placed in a normal bedroom of a students flat, instead of a studio room. On one hand this meant that a speaker setup had to be placed in this room, on the other hand it meant that the sound quality wouldn't be as nice as in a professional surround studio. Yet, the environment wouldn't be fitting the context and idea of the installation, if it was placed in an "artificial" surrounding like a surround studio.

The Setup

To be independent from the light condition in the room, an infrared camera was used. The most practical, and especially cheapest way to do this was using a Kinect 360 camera.

In order to position the sounds in the room and change these positions, it was necessary to have a setup of multiple speakers. In this case, a surround speaker setup of four speakers was used.


Speaker Bild.jpg Kinect2.jpg Kinect.jpg

As you can see on the pictures above, the kinect camera was hung to the ceiling facing downwards.

Video Documentation

Right here you can find a video documentation of the final installation prototype. The audio signal will be explained, recorded and converted to stereo. Like this the audio isn't spatialized, but at least you are able to hear it.

The Video is divided into three parts: Introduction, Demonstration and Explanation.

00:17 - 10:00 Introduction

10:00 - 18:40 Demonstration

18:40 - End Explanation

https://youtu.be/70AmTmC-R4E

Patch Walkthrough and Setup Tutorial

The patch of course is the heart of the whole installation. It processes the live video input from the Kinect, tracks the movement of the recipient visible on the video, connects the tracking data to the sound parameters and the spatialisation of the sounds. It also samples the sound material and routes the sound to the different speakers.

In the following paragraphs you will find a quite detailed description of the patch in text form. You can find a video walkthrough right here

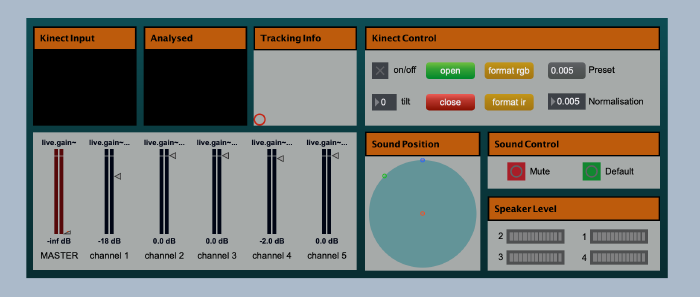

The patch opens in presentation mode by default, showing all the buttons, sliders and objects you need to run the installation. This gives us a much simpler interface to work on.

Bildschirmfoto 2020-11-09 um 10.28.32.png

On the top left corner of the interface you can see tree screens (jit.pwindow). The one on the right shows the normal, unchanged RGB[[Farbe#Farbräume|Red Green Blue]] Colorspace/infrared signal from the Kinect, the one in the middle shows the analysed signal and the "screen" on the left (actually a "pictslider" object) shows the position of the tracked person in the room. You can also use the pictslider object to simulate a tracked movement without having to connect a Kinect-Camera.

On the top right corner you can find a panel called "Kinect Control". This contains everything you need to control and adjust the Kinect and the video signal. At first you can turn on the Kinect with the toggle object saying "on/off". To adjust the position angle of the camera, use the "tilt"-object. To allow the signal flow from the Kinect, or to pause it, use the green and red buttons saying "open" and "close". The two yellow buttons let you choose if you also want to receive an RGB[[Farbe#Farbräume|Red Green Blue]] Colorspace-signal or an infrared-signal. The normalisation adjusts how exact the Kinect signal tracking focusses on the nearest object. You can try around by changing the value. To change the normalisation back to default, you can the "Preset"-button.

On the bottom left you can find the mixer panel. Here you can adjust the master volume, and also the volume of each sound.

In the bottom center, you see a big blue circle, visualising the position of the sounds in the room. On the bottom right you can find volume meters displaying the signal levels going to each speaker. Above that there's a red "mute"-button, in case you need to turn the master volume down as quickly as possible, and also a green "default"-button, that brings all the channel volume sliders back to their original value.

This interface is made for a setup of four speakers. In case you want to add more speakers, and to see their signal level, you would have to manually add more volume meters to the interface.

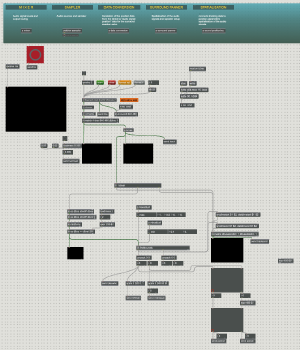

If you leave presentation mode, the main page of the patch is divided into two parts. At the top of the patch you can see a blue headline, containing all other subpatchers and explanations of those. You can see this as an index or table of contents. It also contains the mixer patcher (a "bpatcher") and a visualisation object that shows the position of the sounds in the room.

Bildschirmfoto 2020-09-17 um 15.41.47.png


Right below this table of contents you can find the tracking process patch. That's the part of the main patch that collects the Kinect video input, tracks the movement of the recipient in the video and sends the tracking data to wherever it's being further processed in the rest of the patch.

At the beginning you can find the "freenect.jit.grab" object. This is an external, that collects the live video input from the Kinect. It only works with the first version of the XBOX Kinect 360, model type 1414, and only with Max 7 on below.

Bildschirmfoto 2020-10-14 um 13.22.11.png

The freenect object can be operated with different input messages. First, as you can see, it needs a "qmetro" object to collect the video input. The freenect object can be switched on and off with an "open" and "close" message box. You can choose if you want to work with the RGB[[Farbe#Farbräume|Red Green Blue]] Colorspace or infrared video output with the "format RGB[[Farbe#Farbräume|Red Green Blue]] Colorspace" or "format ir" messages. With a "tilt" object you can adjust the angle of the Kinect Camera Module.

First, the live video output of the freenect is run through a subpatcher called "p normalize". The Kinect automatically detects the distance of the objects that are visible on the video from the Kinect itself. Here in he patcher you can choose how "far" the Kinect is supposed to look. You can adjust the maximum distance in which the Kinect is supposed to scan objects.

Bildschirmfoto 2020-10-14 um 13.40.51.png

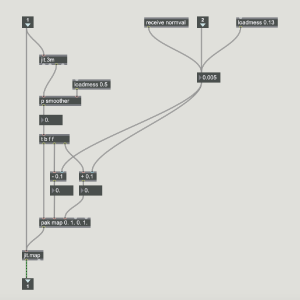

This normalisation patcher is taken from a Kinect tutorial. Some parts are added to the patcher, to adjust the normalisation value with a send object. You can find the source in Tutorial number 2.

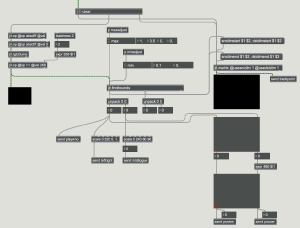

After the normilasation, the signal runs through multiple filters, and into a "jit.findbounds" object. The objects that interact with this "jit.findbound" can be found in the help patch of the object itself. This process determines the position of the object thats visible on the video in relation to the video frame.

Bildschirmfoto 2020-10-14 um 14.26.03.png

So, if you put up the camera on the ceiling and shoot from above, the normalisation will only allow the Kinect to record the object that's the closest, in this case the head of the person in the room. The "jit.findbound" then only sees the head on the video, and determines its position in realtime. Like this you can track the position of the recipient in the room.

Let's open the sampler subpatch.

Bildschirmfoto 2020-11-09 um 10.46.35.png

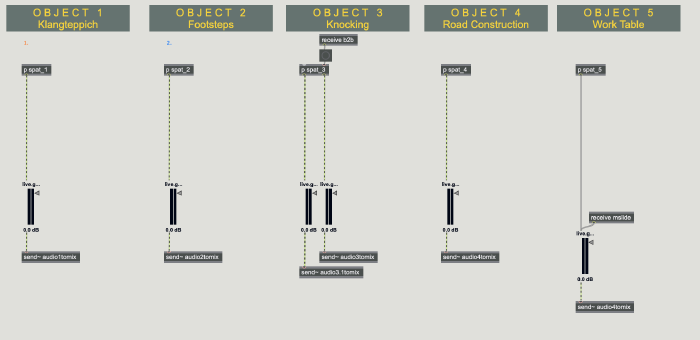

Right here you see five areas with all together six audio channels. Every area has a patcher called "p spat_#". These subpatchers contain the sampler objects that play the audio samples. The audio in then output to the sampler patcher and send to the mixer with send objects.

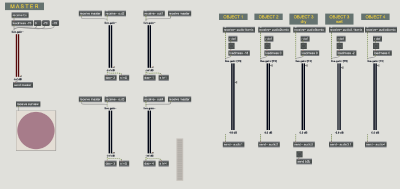

The Mixer subpatcher is a "bpatcher", that displays the buttons that are necessary to adjust the volume of each sound and the master volume. The subpatch also contains volume adjustment for each of the four speakers, but this normally shouldn't be changed, so it's not displayed in the bpatcher.

Bildschirmfoto 2020-11-09 um 11.00.30.png

In presentation mode, or on the patch's main page, the mixer looks like this:

Bildschirmfoto 2020-11-09 um 11.19.33.png


Let's have a look at the "date conversion" subpatcher, that can be found on the patch's main page. This is the part of the patch, that makes it possible to connect the tracking data to the position parameters of the sound. The problem is that the tracking data is made of cartesian coordinates, but the audio spatialisation objects work with polar coordinates. This subpatcher converts the data from cartesian to polar coordinates, using tangent and cosine calculations. This is a pretty complex and laborious process, and there even is a Max/MSP object that does exactly this type of data conversion, called "cartopol". Anyways, this object is not yet included in the patch, so it is still done by the calculations, that work just as fine.

Bildschirmfoto 2020-11-09 um 11.20.51.png

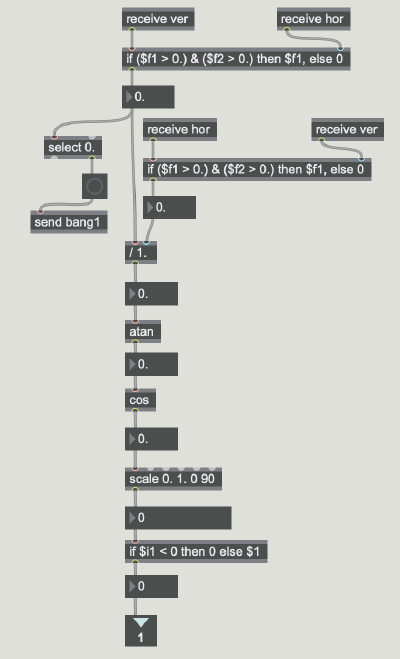

If you open the subpatcher in the top right corner, you can find four channels all containing a subpatcher with a calculation chain, looking like this:

Bildschirmfoto 2020-11-09 um 11.21.17.png

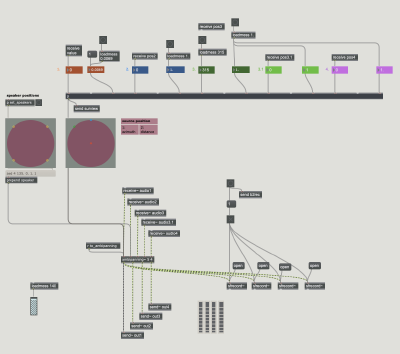

On the right of the "data conversion" subpatcher you can find a subpatcher called "surround panner". This is the part of the patch where the sounds are spatialised, the speaker setup is implemented and the audio signals are routed to the four output channels.

Bildschirmfoto 2020-11-09 um 11.51.38.png

A big part of this patch is created using the ambipanning externals you can find in the resources further down below. In the middle you can see two objects with a circle in the middle. The right one displays the speaker setup. To adjust the setup or add new speakers, you have to open the subpatcher called "p set_speakers" right above.

Bildschirmfoto 2020-11-09 um 11.56.51.png

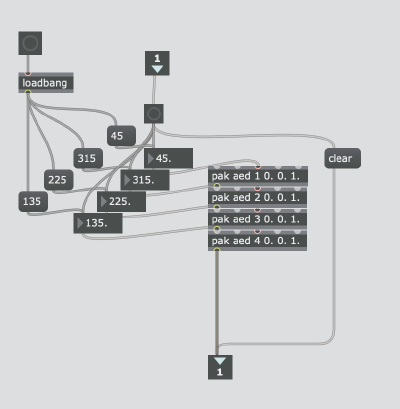

Right here you can see the four speaker positions are defined by a polar coordinate, a degree value. In this case we have four speakers, at 45, 135, 225 and 315 degrees. To add a speaker, you just have to copy and paste one of the object chains and add a bigger number in the "pak" object.

The left "big circle object" displays the position of the sounds. It can also be seen on the interface in presentation mode. It receives values from the patcher above, where every sound has inputs for position values made of degree value and distance from the center.

This spatialisation information is sent to the "ambipanning~ 5 4" object down below, together with the speaker setup information and the audio signals from the mixer.

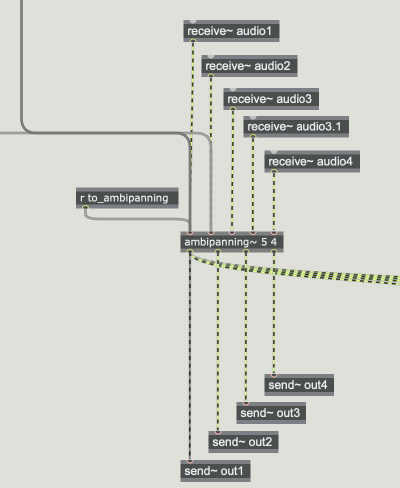

On the bottom of the "surround panner" patch you see an object called "ambipanning~ 5 4".

Bildschirmfoto 2020-11-09 um 12.10.34.png

This object, which also is an external, has two values in its name, five and four. The first value defines the number of audio signals that can be received. As you can see there are five signal inlets on the object. The second value defines how many audio channels you work with, in this case we have four speakers, so we need four outlets, so the second value is four.

The speaker setup information and the sound spatialisation information both have to be sent to the first inlet of the "ambipanning~" object.

Like this, the spatialised and tracking controlled audio is sent to the four audio outputs.

Resources

HARDWARE

Kinect 360 sensor https://www.amazon.de/Microsoft-LPF-00057-Xbox-Kinect-Sensor/dp/B009SJAIP6 (pretty expensive... but you can easily get used ones for less than 40€ on ebay-kleinanzeigen.de)

Kinect 360 Adapter https://www.amazon.de/gp/product/B008OAVS3Q/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

Audio Interface To output audio to multiple external speakers, you'll most likely need an external audio interface. I personally used a USB Audio Interface with four outputs by Focusrite, you can find it here https://www.thomann.de/de/focusrite_scarlett_4i4_3rd_gen.htm?gclid=Cj0KCQiA7qP9BRCLARIsABDaZzjwB2Af2OR8KaZ-4gefxlnKWIMCXL7pSvtLPNEBq0nRha457MMg16IaAjY7EALw_wcB


SOFTWARE

ICST Ambisonics Plugins free download https://www.zhdk.ch/forschung/icst/icst-ambisonics-plugins-7870

Argot Lunar plugin http://mourednik.github.io/argotlunar/

Freenect External https://jmpelletier.com/freenect/


TUTORIALS

1: Color Tracking in Max MSP

(Part 1 of 3)


2: Kinect Input and normalisation

Conclusion and future works

The project so far is finished and came to an end. Yet, the patch, and the installation context will be developed further, as there is a huge potential in this instrument.

This far, the control worked just by changing the position values. It's planned to add for exemple blob tracking to the patch, to control parameters by a certain movement, no matter where in the room it may happen. This would make the whole sound sculpture more diverse and flexible.

A huge and very important addition, that may happen during the next semester, is a visual dimension. This means the sensor data will also be used to control the for example light environment in the room. That's why it's important not to use a simple camera, but a Kinect360 with an infrared camera.

Also, the patch this far only scratches the surface of all the things the Kinect camera is capable of. For example it can be possible to let the installation be visited by more than one person at the time. To explore the given sound situation together, or even compose the sounds as a group.
