Revision as of 15:41, 22 April 2013

Teamspeak

Teamspeak is a voice communication software, which is intended for using it parallel to online games. So it is developed to have a small cpu usage and to be used with low bandwidth. As listening to music while playing is common there is a new high quality audio codec (coming with TS 3.0) called Opus Music which allows enabling a higher bandwidth for music streaming. Therefore TS might be interesting for live performing music over the internet.

The software consists of two parts: a client software with GUIGraphical User Interface and a console based server software. Communication partners have to connect to a server to start talking. If you are connected to a server you can create channels, give them names, protect them with passwords and configure the audio settings for them. As there can be many users on one channel at the same time TS offers the possibility for the users to place the other users in a 3D map helping to locate the different voice messages.

Technical aspects

TS offers three control settings for the input signal: push to talk, voice based activation and constant streaming.

You can also activate echo reducing and echo damping, noise reduction and automatic signal normalization, which are affecting the resulting signal.

If the server settings are supporting there are are five different codecs which can be chosen in ten different quality levels:

  • Speex low-bandwidth (Quality: 0 - 2.49 KB/s | Quality: 10 - 5.22 KB/s)
  • Speex high-bandwidth (Quality: 0 - 2.69 KB/s | Quality: 10 - 7.37 KB/s)
  • Speex ultra-high-bandwidth (Quality: 0 - 2.73 KB/s | Quality: 10 - 7.57 KB/s)
  • Opus Voice (Quality: 0 - 2.73 KB/s | Quality: 10 - 7.71 KB/s)
  • Opus Music (Quality: 0 - 3.08 KB/s | Quality: 10 - 11.87 KB/s)

Tests

I wrote a PD1. Public Domain 2. in the context of the university PD sometimes stands for Product Design 3. Police Department patch to test the distortion of the spectrum and the delay depending on the chosen codec and the settings for the input signal - you can download it here : Media:Test_communication_quality.pd (it might be useful for other communication software as well). To make use of it you need a audio routing software (jack or soundflower) and route the output of your communication software to the 3rd inlet of PD1. Public Domain 2. in the context of the university PD sometimes stands for Product Design 3. Police Department and the inlet of your communication software to the 3rd outlet of PD1. Public Domain 2. in the context of the university PD sometimes stands for Product Design 3. Police Department. The patch offers to functions: spectrum analysis and delay analysis.

As Jack and me have not found any time to work together I did the research on my own. So I have chosen a Teamspeak Server in California (to simulate the delay) and connected to it with two clients. In Jack I routed the output of the first client to the input of PD1. Public Domain 2. in the context of the university PD sometimes stands for Product Design 3. Police Department and the output of PD1. Public Domain 2. in the context of the university PD sometimes stands for Product Design 3. Police Department to the input of the second client (as described above).

These are the results of the spectrum and delay analysis:


  • Opus Music - Quality Level 10 - no input configuration

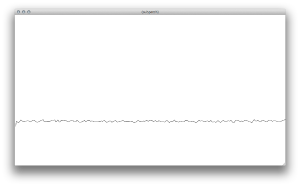

The median spectrum of the impulse being sent
The spectrum of the impulse answer

median roundtrip latency: 330.8 ms


  • Opus Music - Quality Level 10 - echo reducing on
The median spectrum of the impulse being sent
The spectrum of the impulse answer

median roundtrip latency: 332.7 ms


  • Opus Music - Quality Level 10 - echo damping on
The median spectrum of the impulse being sent
The spectrum of the impulse answer

median roundtrip latency: 340.0 ms


  • Opus Music - Quality Level 10 - noise reduction on
The median spectrum of the impulse being sent
The spectrum of the impulse answer

median roundtrip latency: 352.5 ms


  • Opus Music - Quality Level 10 - signal normalization on
The median spectrum of the impulse being sent
The spectrum of the impulse answer

median roundtrip latency: 323.8 ms


  • (standard channel quality) Speex High Bandwidth - Quality Level 7 - no input configuration
The median spectrum of the impulse being sent

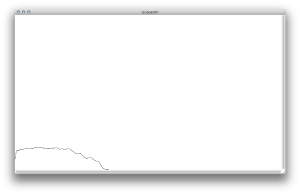

The spectrum of the impulse answer

median roundtrip latency: 385.3 ms

Resulting piece of sound

This is short feedback improvisation using the testing sound of teamspeak. Depending on the current sound I activated and deactivated the possible input flags, adjusted the feedback strength and the current bandwidth (by opening loads of vimeo hd videos). The result is a rhythmic, slightly changing lofi sound.
