Introduction

For my introductory course in the Biolab I decided to focus on plants and especially on growing them under artificial circumstances.
I split my experimentations in two parts:

1:Growing plants under very artificial light

-> idea of experiment #1
-> experiment #1

2:Growing plants under very artificial circumstances

-> idea of experiment #2
-> experiment #2

Motivation

As the topic of growing plants, espacially for food purpuses, under artificial circumstances is becoming more and more popular i began feeling more and more uncomfortable with it. As i was not able to tell why i felt like this, i decided to start experimenting in this field myself, to get in touch with the topic the hands-on way. In contrast to most of the experiments that are conducted recently my goal was not to find a more efficient way of planting but just to watch the effects that a really unnatural way of growing plants can have on the plants or on us.

Concluding Thoughts

During my trials of growing plants under artificial light or in artificial growth medium I understood, that probably my initial thoughts were right and wrong at the same time. I still feel, that there is some problems in the way plants are grown but they don't derive from the fact that it's unnatural.

Artificial Light

Growing plants under artificial light consumes a hole lot of energy, even if you're only lighting a tiny space, as i did. I used 4 1W LEDs that ran for 12 hours a day which equals 48Wh per day. Thats not too much energy, it is about the energy that a human needs to ride his bycicle for half an hour. But as you can see this was only enough to produce 12 really tiny and week sprouts (and some of the energy they used had already been stored in the seeds). according to wikipeda the sun produces roudn about 1367 W/m² which would result in roughly 68 Watts on the area of my growbox. That means on only one hour the sun produced way more energy than my LEDs during 12 hours and that without any effort.

Artificial Growth medium

The growth medium that i used was able to give tha plants a base and to provide them with moisture for around two weeks. After roughly one week mold started growing, because i didn't work sterile enough. And so all tha plants died. Using simple soil that you can find all around has to be watered more often (but at least it can be rewatered) and for some reason usually keeps molds under control, again without any effort

Conclusion

So during my experiments I learned interesting things about the life of plants and in fact right now I have more questions than when starting out, but for my one thing is very obvious: Trying to to make plants grow in an artificial way is nothing bad just because its not like nature, basically we are only using things that are somehow derived from nature, but it needs a whole lot of effort and consumes a big amount of energy. So in the end for me the question is how much energy is it worth e.g. growing plants in winter and where do we get that energy from. Using fossil energy for these purposes surely is quite a bad thing. Using renewable energy is much better, but as a conversion of energy always inherits some inneficiency its always less efficient than using the sunlight directly to grow plants. And regarding the time and work it takes, conventional planting also seems to make more sense to me, as this uses symbiotic effects of organisms to achieve a friendly growing environment very easily compared to buying and controlling different ingredients plus always having to monitor the process.

Ideas

1:GROWING PLANTS UNDER VERY ARTIFICIAL LIGHT

Set up several boxes to grow plants under artificial light. Vary color, duration or other aspects of the light and see, if it changes anything in the growing of plants.
scroll to experiment 1


2:GROWING PLANTS UNDER VERY ARTIFICIAL CIRCUMSTANCES

Grow plants in different substitues for soil, e.g. agar-agar-murishage-skoog-medium and see how they do.
scroll to experiment 2


Experiments

In the following Section you will find pictures and comments of the different stages of the two experiments conducted plus the third one, which is still ongoing. (06.03.2018)

1:Growing plants under very artificial light

Day 0

I build and set up a box, seperated in 4 sections. Each section containing one 1 Watt LED to support the inhabitants with light. The boxes have fans, so the air inside will be interchanged from time to time. To control the amount and - for the first experiment - the duration of the light and the fans i wrote a little script that is running on an arduino. This script also counts the time (and in case of a powerdrain stores this information on the eeprom). The LED are suspended from the top of the box using some bend metal strips, which simply clamp the star platine of the leds in place. Therefor i was able to adjust the space between LED and Pots to my liking, plus i didn't have to use any additional heatsink, as the LED were completely surrounded by air.

For the first part I did not do controlled watering, i just gave them water by hand.

List of Parts

  • Housing made of MDF
  • Arduino Uno
  • 2x 1W LED 660 nm (deep red)
  • 2x 1W LED 440 nm (royal blue)
  • 4x LDD-350L MEANWELL LED Driver
  • 2x 12V Fan
  • generic switching relay
  • 12V 4A power supply
  • terminal strip
  • Wires

->Arduino Script

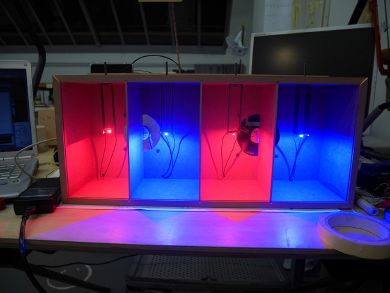

Front View of Growbox Backview of Growbox

In the two left hand sections, the plants will have a 24h day, with 12h of light. In the other two boxes it will be 12h days with 6h light.

I set up the box in my shared-working-room, which was probably not the best idea, as people there tend to be heating a lot, which results in very dry air.

Day 2

The Plants are already sprouting. No real difference. Neither between colors of light nor between durations

Day 5

The plants are growing well. the look a bit leggy, which might be a hint, that the light is not enough. but as i forgot to plant some reference-plants i can't be sure as "gartenkresse" is quite leggy anyway

Day 15

The plants are still growing, but they definitely seem weak. i guess it might be due to the fact that they get not enough motion by the fans. probably its also due to the lack of light. This clearly shows, that i made a mistake: I forgot to set up plants that grow outside the box, therefore I had nothing to compare the growth and I can only make assumptions.

The End

Shortly before Christmas I decided to end this experiment, as i knew the university would shut down electricity during the holidays i took the plants out of there boxes and placed them under sunlight. One of them I ate and it tastetd spicey, as suspected.

When i came back from holidays i noticed something quite interesting. All plants died during the holidays because they ran out of water. Except for one. It had survived two weeks of not beeing watered, while sitting in a very tiny vessel. When i looked closely i noticed, that the most obvious difference bitween this plant and the others was that the surface of the soil was very smooth and plane. So i think this just had a better sealing effect than the other rough surfaces of the other plants.

2:Growing plants under very artificial circumstances

Day 0

Day0 jelly.jpg

As a first step i prepared thy seeds, by soaking them in warm water, which was boiled and thus sterilized before.
Then I prepared some Agar-Agar medium using the following recipe:

Growth Medium Recipe
based on notes of Azucena Sánchez, adopted to what was available in the Lab

  • 0,46 gr (2*0,23gr) Murishage Skoog medium (bought via ebay[1])
  • 4 gr (2*2gr) Sacharose
  • 400ml (2*200ml) distilled water
  • 0,96gr (2*0,48gr) agar

stirred until nearly everything was dissolved
pH medium 1 = 7,3 | pH medium 2 = 8,8

Day 2

Biolab day2 sprouting.jpg

Seeds started sprouting. Having placed some in my appartement i was safe to notice when sprouting started.

Day 5

Green leaves have started growing. I also noticed, that even though agar keeps moisture longer than just water, of course there was some diffusion. So agar would eventually dry out, which was something I did not think of when starting the experiment.

Day 6

The Rise of the mold.

Day 14

Mold seems to be winning

Mold won

Interestingly the pots, that i kept in my room at home grew some very interesting molds and probably some kind of algae. I took some closeup pictures.

Inside the two little petrodishes, that i had lying around with a lid on top, some kind of algaeish structure also grew and the plants inside went yellow. But still after almost 6 weeks now, the stems of the plants don't really seem to be dead.

3:Growing algae

As i ended the experiments before, i wanted to start the next kind of experiment. Wich was tot try to grow algae under artificial light. To start off, i searched the internet for some instructions or tips on growing algae. I found a tutorial, that showed the most basic way to grow algea was to just add plants fertilizer to some tap water, put it to a sunny place and then wait. As this was the most simple thing to do, i started right before leaving weimar for christmas holidays.

Day 0

For the beginning i added 5ml of fertilizer to 1L of water and then filled 3 different jars with it. I had one with the lid on top, so this was fully sealed and only algae already inside the water could grow. On the other hand i was sure, that the water inside would not evaporate totally no matter what happened while i was away. I added a second one with an opened lid and a bottle which was somehow the step inbetween the others.


3 Weeks later

Sadly i noticed that no visible algea had grown during the last 3 weeks. Either there are none in the tap water/ air or there is simply not enough sunlight during the wintermontsh to make them grow.

But interestingly enough there were lots of dead flies in solution. Of course not in the closed jar, but in all the others. I allready noticed this kind of flies beeing around for the past few weeks and i think the might be some kind of flie living in plants pots, so that could be the reason the go to the fertilized water, but i will try to find out more about those flies, during the upcoming days.

3 Weeks later: Update

The flies, seem to be some kind of mourning mosquito (Trauermücke). Thats basically a fly, that lives in the soil (inside planting pots) that might be the reason why they mass-killed themselves in a jar filled with water and fertilizer. I found some information at wikipedia[2]


Time To Speed things up

As algea from Tapwater were growing really slow, I decided to speed things up a little bit. So i got some water that should be well contaminated already from places, that are known for that. And the best place for growing algea is, as we all know: aquariums so i went to two places that everyone knows keep aquariums:

Bim Bim, the chinese Restaurant and the Aqua-Zoo Shop

Both waters already look greenish. And the guy from aqua-zoo told me that i should get some "Schmieralgen" growing, as he knows that this usually happens. A Quick research gave me the information, that "Schmieralgen" are usually Blue algea, which in fact are commonly not algea but cyanobacteria[3]. So next step will be using the microscope to see if i can find something in the water. Afterwards i will set up the artificial-light box again, to help the cyanobacterie and or algea grow better during these lowlight days
