Fortschritt

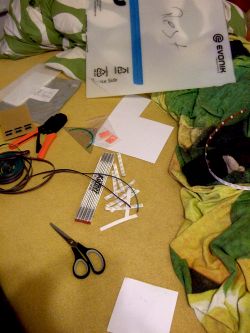

Jan ledbox1.jpg Jan ledbox2.jpg 34625454246.JPG

Example Video

This is how it will look like.

Specs

  • 50 x 50 cm
  • 16 "Pixels"
  • 144 LEDLight-emitting diode (5m LEDLight-emitting diode stripe, cut into 3x1-pieces)
  • 12 volt
  • Arduino
  • Shift Registers

For tests, i used 74HC_HCT595 shift registers (http://www.nxp.com/documents/data_sheet/74HC_HCT595.pdf) and uln2803a darlington arrays (http://www.ti.com/lit/ds/symlink/uln2803a.pdf). For some reason, it worked not as expected, so i bought TPIC6B595 high power shift registers. Maybe they will arrive in germany till middle of next week.

Specs to come..

  • Audio Input (3,5)
  • Touch (capacitive sensing, maybe reduced resolution: 4x4)

Learning
